Products  >  Directional Couplers   >  800 ~2500 MHz 200 Watts Directional couplers


Model No. - MES 3800200 DC-XX




PARAMETERS SPECIFICATIONA
Frequency Rang 800~2500 MHz
Directivity ≥ 20 dB
Return Loss ≥ 20 dB
Impedance 50Ω
PIM ≤-150@+43dBm x 2 dBc
Connector N-Female
Power Rating 200 Watts
Temperature -30~ + 85 °C

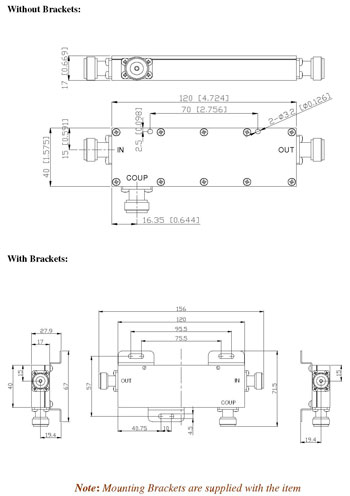

Dimensions (Approx.) 120x40x17mm
Weight(Approx.) 1.21Kg
Environment Indooe u se


Part Number

Coupling
Values (dB)

Coupling
Loss(dB)

Norminal Coupling(dB)

Insertion
Loss(dB)

MES-3800200 DC-5 5 1.65 5±0.5 0.35
MES-3800200 DC-6 6 1.26 6±0.5 0.34
MES-3800200 DC-7 7 0.97 7±0.5 0.23
MES-3800200 DC-8 8 0.75 8±0.5 0.25
MES-3800200 DC-10 10 0.46 10±0.5 0.19
MES-3800200 DC-12 12 0.28 12±0.8 0.22
MES-3800200 DC-15 15 0.14 15±0.8 0.16
MES-3800200 DC-20 20 0.04 20±0.8 0.16
MES-3800200 DC-25 25 0.03 25±0.8 0.17
MES-3800200 DC-30 30 0.01 30±1.0 0.19
MES-3800200 DC-40 40 0.00 40±1.5 0.20
