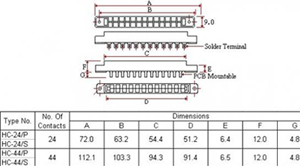

Connectors - EC-Double Sided

Technical Specifications

Parameter	Value
Card Thickness	1.42 mm - 1.8 mm
Contact Resistance, Max(Initial)	10 m Ohms
Contact Termination	Solder / PCB Mountable .
H. V. Break Down	1.5 KV .
Insulation Resistance(Min)	1000 M Ohms
Material Body	Polycarbonate/PBTP
Material Contacts	Gold, Silver or Tin Plated .
Mechanical Life	500 Cycles Min.
No. of Contacts	24,44
Rated Current	5 Amp. At 300 Volts rms.
Temperature(Max)	80 Deg. C
Type	Double Sided Edge Connector

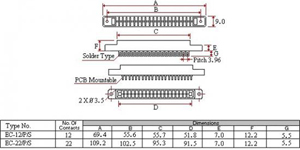

Connectors - EC- Single Sided

Description

Solder Eyelets. Gold / Silver or Tin Plated (Phenolic or DAP Insulator)

Technical Specifications

Parameter	Value
Card Thickness	1.42 mm - 1.8 mm
Contact Resistance, Max(Initial)	10 m Ohms
Contact Termination	Solder
H. V. Break Down	1.5 KV
Insulation Resistance(Min)	1000 M Ohms
Material Body	Phenolic or DAP Insulator
Material Contacts	Gold, Silver or Tin Plated
Mechanical Life	500 Cycles Min.
No. of Contacts	12,16,22
Rated Current	5 Amp. At 600 Volts rms. .
Temperature(Max)	80 Deg. C
Type	Single Sided Edge Connector,

Connectors - HC- double- sided

Technical Specifications

Parameter	Value
Card Thickness	1.42 mm - 1.8 mm
Contact Resistance, Max(Initial)	10 m Ohms
Contact Termination	Solder / PCB Mountable
H. V. Break Down	1.5 KV
Insulation Resistance(Min)	1000 M Ohms
Material Body	Polycarbonate
Material Contacts	Phosphor Bronze, Gold, Silver or Tin Plated .
Mechanical Life	500 Cycles .
No. of Contacts	24,44
Rated Current	5 Amp. At 300 Volts rms
Temperature(Max)	80 Deg. C
Type	Printed Circuit Connector With Bellows Contact
