Products > DECT 1880 MHz Product > 1880 MHz Yagi Antenna

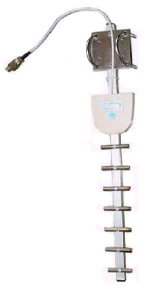

Model No. - MES 61812 YN

Description

MES 61812 YN series high performance Yagi Antennas features high gain and is ideally suited for directional applications operating in DECT 1880~1920 MHz Frequency band. The unique design of this Antenna allows it to be installed for
either vertical or horizontal polarization.

Application

It is primarily designed for use in DECT band for boosting signal in both uplink and downlink by providing 12.0 dBi gain. Made in excellent finish, withstanding tough environment and at low cost it provides high performance. These antennas can be easily mounted on poles at subscriber ends. These are available with choice of connectors i.e. N, TNC, SMA.
For convenience of installation these can also be supplied with 15 Mtr cable to extend to FWTs. The antenna is supplied with Stainless Steel mounting brackets & fasteners

PARAMETERS	SPECIFICATIONS
Frequency Range	1880~1920 MHz
Gain	12.0 dBi
VSWR	≤1.4: 1
H Plane Beamwidth	50°
E Plane Beamwidth	40°
Front to Back Ratio	>13 dB
Polarization	Vertical or Horizontal
Max. Power	100 Watts
Impedance	50 Ω
Connector	N (F)
Structure	9 Elements
Lightning Protection	DC Ground

Note : Mounting Hardware and Brackets are supplied with Antenna

WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
