Model No. -  MES 61810 YN




Description

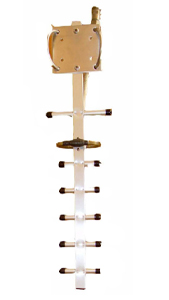

MES 61710 YN series Yagi Antennas covers the 1710 - 1880 MHz GSM frequency & can be used for cellular radio wireless applications. The antenna has been designed to be waterproof and is easy to install. It is supplied with a mounting bracket that allows it to be fixed to various objects.


Application

• Cellular Radio Wireless Applications for GSM-II band
• Subscriber / Consumer Premises Equipment (CPE)
   in Wireless Local Loop (WLL) applications
• Ideal f or Point to Point,short or long link Applications

PARAMETERS SPECIFICATIONS
Frequency Range 1710~1800 MHz
Gain 10.0 dBi
VSWR ≤1.5: 1
Half Power Beamwidth 34°
Front to Back Ratio ≥15 dB
Polarization Vertical or Horizontal
Max. Power 100 Watts
Impedance 50 Ω
Connector N (F)
Structure 7 Elements
Length (Approx.) 400 mm
Weight (Approx.) 0.425 Kg
Lightning Protection Direct Ground

Note : Mounting Hardware and Brackets are supplied with Antenna


WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
