Description

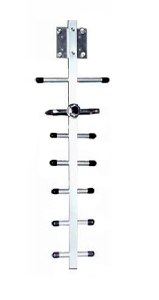

MES 68010 YN series high performance Yagi
Antennas features high gain and is ideally suited
for directional applications operating in CDMA 800
MHz frequency band. The unique design of this
Antenna allows it to be installed for either vertical
or horizontal polarization.
Application
It is primarily designed for use in CDMA 800 MHz
frequency band for boosting signal in both uplink
and downlink by providing 10.0 dBi gain. Made in
excellent finish, withstanding tough environment
and at low cost it provides high performance.
These antennas can be easily mounted on poles at
subscriber ends. These are available with choice
of connectors i.e. N, TNC, SMA.
For convenience of installation these can also be
supplied with 15 Mtr cable to extend to FWTs. The
antenna is supplied with Stainless Steel mounting
brackets & fasteners.
|
