| Products / Tapping Spec. For Automatic Insertion |
Capacitor Body |
P±0.5 |
Packing Quantity |
Capacitor Body |
W±1.5 |
0 < D ≤5 |
5 |
2500 ~ 3500 |
0< L ≤ 16.5 |
52.4 |
5.01 < D ≤ 10 |
10 |
700 ~ 1500 |
16.6< L ≤ 28.5 |
63.5 |
10.01< D ≤ 15 |
15 |
300 ~ 500 |
28.6< L ≤ 37.0 |
73.0 |

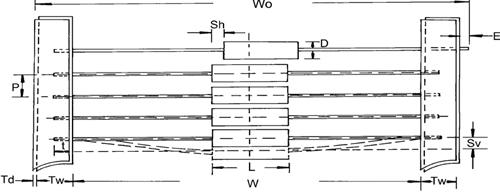

Item |
Symbol |
Spec. |
Body horizontal deviatio |
Sh |
0.7 MAX |
Body Vertical deviation |
Sv |
1.2 MAX |
Lead-wire protrusion |
E |
0.5MAX |
Lead-wire insertion |
t |
3.2 MIN |
Item |
Symbol |
Spec. |
Tape width |
Tw |
6.0± 1.0 |
Tape deviation |
Td |
0.8 MAX |
Overall length |
Wo |
The "Wo" shall |
Dimensions |
|
| Internal width "A" | > Wo 3.0 ~ 8.0 |
| Disc thickness "B" | 3.0± 1.0 |
| Disc diameter "C" | 356 MAX |
| Hub recess I.D. "D" | 76.2± 1.0 |
| Core diameter "E" | 90 MAX |
| Arbor hole diameter "d" | 16.0± 1.0 |
| Bare tape at both "L" terminals of reel |
915 min |
REEL PACKING |
|
|
