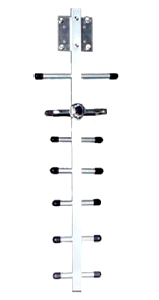

Model No. - MES 68010 YN

Description

MES 68010 YN series high performance Yagi Antennas features high gain and is ideally suited for directional applications operating in CDMA 800 MHz frequency band. The unique design of this Antenna allows it to be installed for either vertical or horizontal polarization.

Application

It is primarily designed for use in CDMA 800 MHz frequency band for boosting signal in both uplink and downlink by providing 10.0 dBi gain. Made in excellent finish, withstanding tough environment and at low cost it provides high performance. These antennas can be easily mounted on poles at subscriber ends. These are available with choice of connectors i.e. N, TNC, SMA.
For convenience of installation these can also be supplied with 15 Mtr cable to extend to FWTs. The antenna is supplied with Stainless Steel mounting brackets & fasteners.

PARAMETERS	SPECIFICATIONS
Frequency Range	824~960MHz
Gain	10.0 dBi
VSWR	≤1.5:1
H Plane Half Power Beam Width	58°±4°
E-Plane Half Power Beam Width	50°±4°
Front to Back Ratio	≥13 dB
Polarization	Vertical or Horizontal
Max. Power	100 Watts
Impedance	50 ohms
Connector	N (F)
Length (Approx.)	639 mm
Weight (Approx.)	0.586 Kg
No. of Elements	7
Rated Wind Velocity	240 Km/hr
Working Temperature	-40°C ~ +60°C
Lightning Protection	Direct Ground

Note : Mounting Hardware and Brackets are supplied with Antenna

WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
