PRODUCTS |
| |
| |
|
|
|
| |
| |
|
|
| |
| PARAMETERS |
SPECIFICATIONA |
| Frequency Range |
380~520 MHz |
| Division ratio |
3.01 dB |
| Insertion Loss |
≤3.1 dB |
| Ripple in band |
≤±0.2 dB |
| Return Loss |
≥26 dB |
| Amplitude Balance |
≤0.2 dB |
| Phase Balance |
≤5° |
| Impedance |
50Ω |
| PIM |
≤-140@+43dBm×2 dBc |
| Connector |
N (F) |
| Power Rating |
500 Watts |
| Temperature |
-40°C~+70°C |

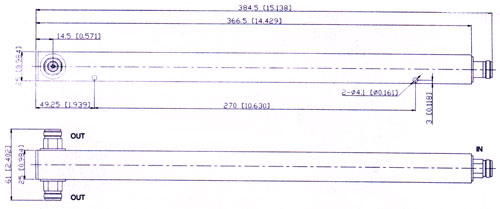

| Dimensions (Approx.) |
384.5×61×25 mm |
| Weight (Approx.) |
0.68 kg |
|
| |
|
| |
WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT |
|
|
| |
|
|
|
|
