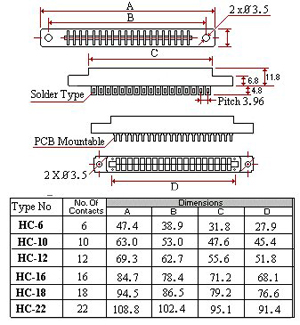

Connectors - HC- single- sided

Description

Solder / PCB Mountable. Gold / Silver or Tin plated (Polycarbonate / PBTP)

Technical Specifications

Parameter	Value
Card Thickness	1.42 mm - 1.8 mm .
Contact Resistance, Max(Initial)	10 m Ohms
Contact Termination	Solder / PCB Mountable .
H. V. Break Down	1.5 KV .
Insulation Resistance(Min)	1000 M Ohms
Material Body	Polycarbonate/PBTP
Material Contacts	Phosphor Bronze, Gold, Silver or Tin Plated
Mechanical Life	500 Cycles
No. of Contacts	6,10,12,16,18,
Rated Current	5 Amp. At 300 Volts rms
Temperature(Max)	80 Deg. C
Type	Printed Circuit Connector With Bellows Contact

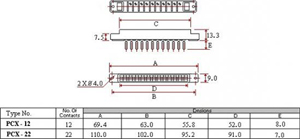

Connectors - pcx

Description

Gold / Silver or Tin Plated Contacts. Solderable

Technical Specifications

Parameter	Value
Card Thickness	1.42 mm - 1.8 mm
Contact Resistance, Max(Initial)	10 m Ohms
Contact Termination	Solder
H. V. Break Down	1.5 KV
Insulation Resistance(Min)	1000 M Ohms
Material Body	Polycarbonate/PBTP
Material Contacts	Phosphor Bronze, Gold, Silver or Tin Plated
Mechanical Life	500 Cycles
No. of Contacts	12, 22
Rated Current	5 Amp. At 300 Volts rms
Temperature(Max)	80 Deg. C
Type	Printed Circuit Connector With Cantilever Contact

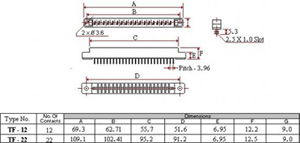

Connectors - TF

Description

Gold / Silver or Tin Plated Contacts. Solderable (Phenolic / DAP Insulator)

Technical Specifications

Parameter	Value
Card Thickness	1.42 mm - 1.8 mm
Contact Resistance, Max(Initial)	10 m Ohms
Contact Termination	Solder
H. V. Break Down	1.5 KV
Insulation Resistance(Min)	1000 M Ohms
Material Body	Phenolic/DAP
Material Contacts	Phosphor Bronze, Gold, Silver or Tin Plated
Mechanical Life	500 Cycles
No. of Contacts	12, 22
Rated Current	5 Amp. At 600 Volts rms
Temperature(Max)	80 Deg. C
Type	Printed Circuit Connector With Tuning Fork Contact
