| Products / Tapping Spec. For Automatic Insertion |

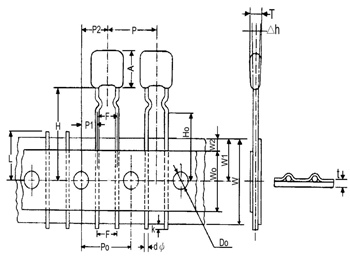

Unit : mm |
|||||
SYMBOL |
SPECIFICATIONS |
SYMBOL |
SPECIFICATIONS |
||
VALUE |
TOL. |
VALUE |
TOL. |
||
A |
12.5 |
max |
Wo |
12.5 |
min |
T |
6.5 |
max |
W1 |
9.0 |
±0.5 |
dΦ |
0.5 or 0.6 |
±0.05 |
W2 |
3.0 |
max |
P |
12.7 |
±1.0 |
H |
PEI:20.5 |
±0.75 |
Po |
12.7 |
±0.3 |
Other:22.0 |
||
P1 |
3.85 |
±0.7 |
Ho |
16.0 |
±0.5 |
P2 |
6.35 |
±1.3 |
k |
1.0 |
max |
F |
5.0 |
±0.5 |
Do |
4.0 |
±0.2 |
Δ h |
0 |
±2.0 |
t |
0.7 |
±0.2 |
W |
18.0 |
±0.5 |
L |
11.0 |
max |

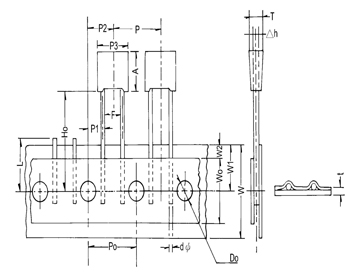

Unit : mm |
|||||
SYMBOL |
SPECIFICATIONS |
SYMBOL |
SPECIFICATIONS |
||
VALUE |
TOL. |
VALUE |
TOL. |
||
A |
12.5 |
max |
Wo |
12.5 |
min |
T |
6.5 |
max |
W1 |
9.0 |
±0.5 |
dΦ |
0.5 |
±0.05 |
W2 |
3.0 |
max |
P |
12.7 |
±1.0 |
H |
- |
- |
Po |
12.7 |
±0.3 |
|||
P1 |
3.85 |
±0.7 |
Ho |
16.0 |
±0.5 |
P2 |
6.35 |
±1.3 |
P3 |
12.0 |
max |
F |
5.0 |
±0.5 |
Do |
4.0 |
±0.2 |
Δ h |
0 |
±2.0 |
t |
0.7 |
±0.2 |
W |
18.0 |
+1.0-0.5 |
L |
11.0 |
max |
Reel Packing
Ammunition Packing
A |
28±3 |
W1 |
45 +5-2 |
||
B |
80 min |
W2 |
55 max |
||
D |
360 max |
||||
A |
50±2 |
||||
B |
260 max |
||||
C |
340 max |
||||
