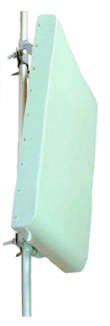

Model No. - MES 64511 SN-65

Description

MES 64511 SN-65 Sector Antenna Arrays provide 65° beamwidth coverage in CDMA 450 ~ 470 MHz frequency band. Each of the base station antennas in the array can be adjusted individually to compensate for the geography of the installation location. This feature ensures maximum coverage of the array for service providers. Since the RF is concentrated into a narrow field, the result is very high gain and excellent signal characteristics

Application

• Base station Antennas & WLL Hotspots
• Wireless Two-Way Voice, Data, and Video Services
• 450 MHZ CDMA Broadband Applications
• Multipoint and Mobile Applications

PARAMETERS	SPECIFICATIONS
Frequency Range	450-470 MHz
Gain	11.0 dBi
VSWR	≤1.5: 1
Horizontal Beamwidth	65°
Vertical Beamwidth	30°
Front to Back Ratio	≥ 25 dB
Polarization	Vertical
Max. Power	500 Watts
Isolation	≥ 25 dB
Impedance	50Ω
Connector	N (F)
Radome material	Fiberglass
Radiating Element’s Material	Brass
Back panel material	Passivated Aluminum
Dimensions (Approx.)	1534 x 518 x 132 mm
Cross polar Discrimination	≥ 15 dB
Weight (Approx.)	6.0 kg
Intermodulation IM3	≤-110 dBm
Mounting Mass Diameter	Φ 40-90 mm
Rated Wind Velocity	216 km/hr
Lightning Protection	Direct Ground

Note : Mounting Hardware and Brackets are supplied with Antenna

WE ALSO UNDERTAKE DESIGNS PER YOUR REQUIREMENT
