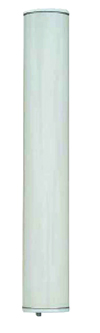

Model No. - MES 64514 SN-65

Description

MES 64514 SN-65 Sector Antenna Arrays provide 65° of beamwidth coverage in CDMA 450 ~ 470 MHz frequency band. Each of the base station antennas in the array can be adjusted individually to compensate for the geography of the installation location. This feature ensures maximum coverage of the array for service providers. Since the RF is concentrated into a narrow field, the result is very high gain and excellent signal characteristics

Application

• Base station Antennas & WLL Hotspots
• Wireless Two-Way Voice, Data, and Video Services
• 450 MHZ CDMA Broadband Applications
• Multipoint and Mobile Applications

PARAMETERS	SPECIFICATIONS
Frequency Range	450-470 MHz
Gain	14.0 dBi
VSWR	≤1.5: 1
Horizontal Beamwidth	65°
Vertical Beamwidth	15°
Front to Back Ratio	≥ 25dB
Polarization	Vertical
Max. Power	500Watts
Isolation	≥ 25dB
Impedance	50Ω
Connector	N (F)
Radome material	Fiberglass
Radiating Element’s Material	Brass
Back panel material	Passivated Aluminum
Dimensions (Approx.)	2060 x 490 x 110 mm
Cross polar Discrimination	≥15dB
Weight (Approx.)	11.0 kg
Intermodulation IM3	≤-110dBm
Mounting Mass Diameter	Φ 40-90mm
Rated Wind Velocity	216 km/hr
Lightning Protection	Direct Ground

Note : Mounting Hardware and Brackets are supplied with Antenna
