| Products / Enclosures-Boxes |
 |
 |

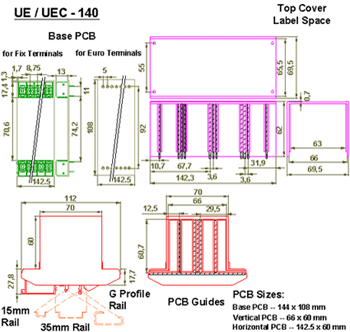

| Din Rail Enclosure -UEC / UE - 140 |
Key Features :
1] Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails
2] Modular construction enables ease in design and servicing
3] Enclosures inside: 70 x 140 x 60 mm.
4] PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
5] PCB guides: Integral molded guides in all directions
6] Terminal Option: 52 Euro 5mm pitch OR 32 Fixed 3.75 mm pitch.
7] Knockout blanks for individual terminal configuration in covers of Euro Terminal version
8]Top cover available with countersunk screws as option
| Enclosure Parts | |
| 1] Top cover |
6] Horizontal PCB |
| 2] End Piece |
7] Vertical PCB |
| 3] Foot Piece |
8] Euro Terminals |
| 4] Spacer Piece |
9] Fixed Terminals |
| 5] Vertical PCB |
10] Terminal Covers |
| Material : | |
| Cover : ABS | Foot Piece : Nylon 6.6 |
| End Piece : Nylon | Colour : Light Gray |
| Ordering Informatiom | |
| UEC-140-00 | Enclosure with Euro Term. Covers (Last two digits indicate number of |
| UE-140 | Enclosure with Fixed 32 Term. |
| UEW-140 | Enclosure without Terminals & Terminal Covers |
| Accessories (Loose Parts) | |
| ET-0.5-2P | Euro Terminal 2 Pin |
| ET-0.5-3P | Euro Terminal 3 Pin |
| UBRH | High Bracket for Wall / Surface mounting. |
| UBRL | Low Bracket for Wall / Surface mounting. |
| PB-140 | Base PCB (for Prototype making) |
| RL-140 | Rail Piece For Wall Mounting |

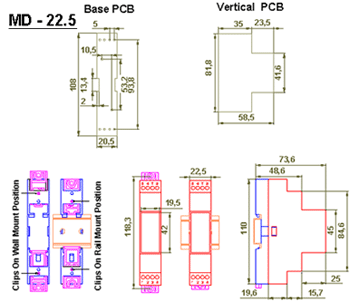

| ModulBox-Dualmount-22.5 |
Key Features :
1] Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB
2] Snap-together design speeds up assembly
3] Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate
4] Max. 8 Terminal (4+4) - standard 5mm pitch
5] Air ventilation - having slots for ventilation
6]Protection - IP20 (finger protected) Protection against accidental contact
7]Terminals are optional - Enclosure supplied with / without terminals-customer can
use standard commercial terminal available of their choice.
| Case Parts | |
| 1] Case Top cover |
4] Vertical PCB |
| 2] Base Plate |
5] Terminals |
| 3] Base PCB |
6] Mounting Clips |
| Material : | |
| Cover : ABS | Noryl (FR - UL94V-0) |
| Polycarbonate (FR -UL94V-0) |
Cover : White |
| Base : ABS |
Base: Black |
| Ordering Informatiom | |
| MD-22.5-01 | Case complete without Terminals |
| MD-22.5-02 | Case complete without Terminals |
| Accessories (Loose Parts) | |
| MDC-22.5-01 | Top Cover standard |
| MDB-22.5 | Base plate with clips |
| MDP-22.5-01 | Base PCB ( For initial prototype making ) |
| ET-0.5-2P | Euro Terminal 2 Pin |
| ET-0.5-3P | Euro Terminal 3 Pin |

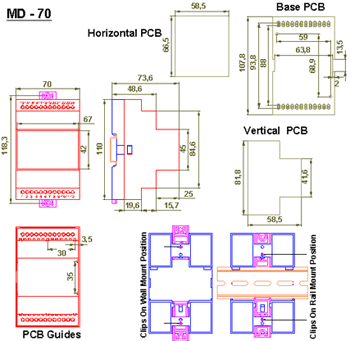

| ModulBox-Dualmount-70 |
Key Features :
1] Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB
2] Knockout blanks for individual terminal configuration
3] Snap-together design speeds up assembly
4] Three PCBs provision - Base PCB fixed on Base Plate, Vertical and Horizontal PCBs for which cover has integral molded guides
5] Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate
6] Max. 24 Terminal (12+12) - standard 5mm pitch fixed OR Plug-In type
7] Closed cover available for front side mating connectors like D-sub OR for any other option
8] Air ventilation - having slots for ventilation.
9] Protection - IP20 (finger protected) Protection against accidental contact
10]Terminals are optional - Enclosure supplied with / without terminals-customer can
use standard commercial terminal available of their choice.
| Case Parts | |
| 1] Case Top cover |
5] Horizontal PCB |
| 2] Base Plate |
6] Fixed Terminals |
| 3] Base PCB |
7] Plug-In Terminals |
| 4] Vertical PCB |
8] Mounting Clips |
| Material : | |
| Cover : ABS | Noryl (FR - UL94V-0) |
| Polycarbonate (FR -UL94V-0) |
Cover : White |
| Base : ABS |
Base: Black |
| Ordering Informatiom | |
| MD-70-01 | Case complete without Terminals |
| MD-70-02 | Case complete fixed Terminals |
| MD-70-03 | Case complete Plug-In Terminals |
| Accessories (Loose Parts) | |
| MDC-70-01 | Top Cover standard - Fixed Terminals |
| MDC-70-02 | Top Cover for Plug-In Terminals |
| MDP-70-03 | Base PCB ( For initial prototype making ) |
| MDB-70 | Base plate with clips |
| MDP-70-01 | Base PCB ( For initial prototype making ) |
| ET-0.5-2P | Euro Terminal 2 Pin |
| ET-0.5-3P | Euro Terminal 2 Pin |
