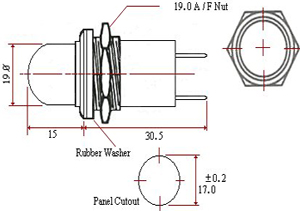

| Lamp Holders - IL-40 |
| Lamp Holders - LR-1 |

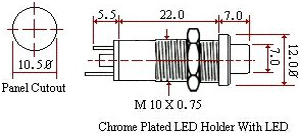

| Lamp Holders - LRH-1 |
| Lamp Holders - LRH-2 |
| Parameter | Value |
| Material | Nylon |
| Mounting | Panel, Snap-in type |
| Permissible Temp. for Soldering | 270 deg. C for 5 seconds max. |
| Permissible Temp. With / Without load | -20 deg. C to +85 deg. C |
| Terminals | Solder-type |
| Type | Mono colour LED Indicator |
| V/A Rating | 20 mA, 2 VDC |
| Pages : |  |
 |
