| Specifications | Units / Models No. |
|
3010 |
3010 - D | |
| Number of Turns | 10 | 10 |
| Effective Angle of Rotation,° | 3600 + 10/-0 | 3600 + 10/-0 |
Power Rating, Watt at 40°C |
3 | 3 |
Resistance range, Ω |
50 - 50K | 50 - 50K |
Resistance Tolerance, % |
± 0.5 Standard, others on request |
|
End Resistance, Ω |
2 or % Linearity, whicever is greater |
|
| Linearity Tolerance, % | ± 5 Standard, ± 0.25 Special |
|
Maximum Working Voltage, VDC |
500 |
500 |
| Insulation Resistance, MΩ at 500 VDC | 1000 |
1000 |
| Voltage Proof, VAC for 1 min, at sea level | 1500 |
1500 |
| TCR of Resistance Wire, ppm /°C | ± 150 maximum, (Details in Resolution Chart) |
|
| Rotational Life Expectancy, Shaft Revolution | 250,000 Δ R< 3% | |
| Temperature range, °C | 0 to 70 | |
Resolution Chart
Resolution chart |
||
3010 |
||
Res.Ω |
Resolution |
TCR PPM / °C |
50 |
0.065 |
30 |
100 |
0.065 |
30 |
200 |
0.055 |
30 |
250 |
0.044 |
30 |
500 |
0.037 |
30 |
1K |
0.029 |
30 |
2K |
0.032 |
80 |
5K |
0.023 |
80 |
10K |
0.016 |
80 |
50K |
0.011 |
20 |

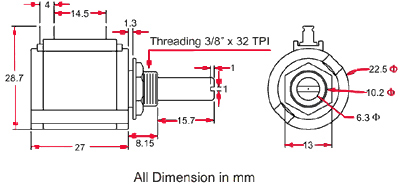

| Model No. | Resistance Value |
Linearity | Shaft Length, mm |
|
| 3010 | 50, 100, 200, 250, 500, 1K, 2K, 5K,10K,20K, 50K | 0.5 / 0.25 |
10, 15, as required
|
|
| Example: 3010, 20K, 0.25, 15mm | ||||
