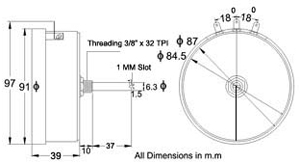

| PotentioMeters -R.W-15 |
| Specifications | |
| Resistance Range | 50W to 50K W |
| Standard Values | 50,100,150,200,250,500,1K,1K5, 2K, 2K5,3K,5K,10K,20K,25K,50K |
| Resistance Tolerance | + 10 % Standard, + 5 % special |
| Power Ratting | 15 Watt @ 40 ° C |
| End Resistance | 0.2 W or 0.02 % which ever is > |
| Effective Angle of Rot. | 310 ° + 15° |
| Maximum Working Vol. | 500 VDC |
| Insulation Resistance | 500 Meg. W @ 500 VDC |
| Voltage Proof | 1000 VAC for 1 Min. At Sea level |
| TCR of Resistance Wire | 150 ppm/ ° C |
| Mechanical Angle of Rot. | 330 ° + 15° |
| Rotational Life Expectancy | 20,000 Cycles |
| Temperature Range | 0 - 70° C. |

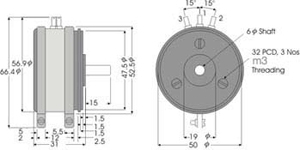

| PotentioMeters -S-50 |

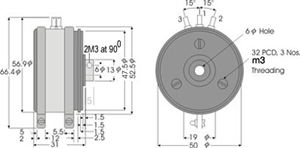

| PotentioMeters -HS-50 |
| Specifications | |
| Resistance Range | 100W to 10K W |
| Power Ratting | 3 Watt |
| Linearity | Better then + 1% |
| Insulation Resistance | 500 Meg. W @ 500 VDC |
| Max. Working Voltage | 200 VDC |
| Voltage Proof | 1 KVDC for 1 Min. |
| Electrical Angle | 355 ° |
| Theoretical Resolution % of Resistance Value | |
| Resistance Value | % |
| 100 W | 0.234 |
| 500 W | 0.124 |
| 1K W | 0.137 |
| 2K W | 0.012 |
| 5K W | 0.069 |
| 10K W | 0.054 |
Standard Features :
1] 50 mm Diameter, 30 mm Height
2] Mechanical Rotation 360 °C
3] Double Ball Bearings
4] Shaft Ø(6mm), Non magnetic Stainless Steel
5] Shaft Length Standard : 15 mm
6] Shaft Length Others : 20,25, 30mm
Optional :
1] Threaded Bush Mounting Type
2] Sine Cosine Curve
3] Tapping on resistance track
4] Your Specific requirement
5] Dual Gang
6] Shaft on both sides
7] Shaft length as per customer requirement
| Specifications | |
| Resistance Range | 100 W to 5K W per 50 mm of Stroke |
| Power Ratting | 0.75 Watt per 50 mm of Stroke |
| Linearity | Better then + 1 % |
| Insulation Resistance | 500 Meg. W @ 500 VDC |
| Max. Working Voltage | 200 VDCl |
Features :
1] 32 mm Square Aluminum Housin
2] 6 mm
Stainless Steel Shaft
3] Adjustable Mounting Clamps
4] Standard Stroke Length (mm) 50, 100, 150, 200, 250, 300, 350, ......, 500 mm
5] Options of Rod End Bearing or Ball Joint Coupling
