Technical Specifications |
| |
|
|
| |
|

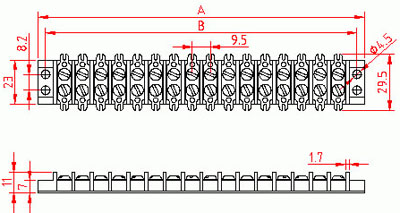

| SE394 |
| Description |
| Available in range from 2 way to 16 way terminations . |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power.
Supplies, Invertors, Printers, Stabilizers, Airconditioners, Automobiles, Weighing Scale Equipment, Industrial light etc. |
| Features |
Rigid Design, Insert Moulded Brass Bush in Housing ,
Brass Screws Nickel Plated, Both side Soldering option |
| Also available in |
| 2 WAY |
SE390 |
10 WAY |
SE398 |
| 3 WAY |
SE391 |
11 WAY |
SE399 |
| 4 WAY |
SE392 |
12 WAY |
SE400 |
| 5 WAY |
SE393 |
13 WAY |
SE401 |
| 6 WAY |
SE394 |
14 WAY |
SE402 |
| 7 WAY |
SE395 |
15 WAY |
SE403 |
| 8 WAY |
SE396 |
16 WAY |
SE404 |
| 9 WAY |
SE397 |
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
Technical Specifications |
|
| |
|
|
|
| |
|

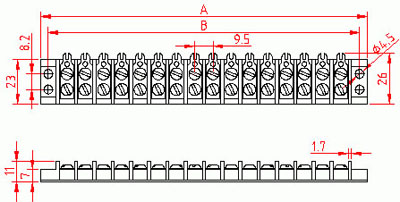

| SE414 |
| Description |
| Available in range from 2 way to 16 way terminations . |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Printers, Stabilizers, Airconditioners, Automobiles, Weighing Scale Equipment, Industrial light etc. |
| Features |
Rigid Design, Insert Moulded Brass Bush in Housing ,
Brass Screws Nickel Plated, Single side Soldering option |
| Also available in |
| 2 WAY |
SE410 |
10 WAY |
SE418 |
| 3 WAY |
SE411 |
11 WAY |
SE419 |
| 4 WAY |
SE412 |
12 WAY |
SE420 |
| 5 WAY |
SE413 |
13 WAY |
SE421 |
| 6 WAY |
SE414 |
14 WAY |
SE422 |
| 7 WAY |
SE415 |
15 WAY |
SE423 |
| 8 WAY |
SE416 |
16 WAY |
SE424 |
| 9 WAY |
SE417 |
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications |
| |
|
|
| |
|

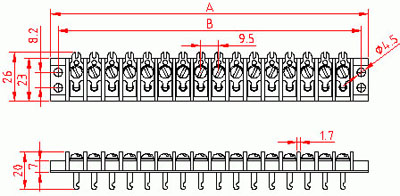

| SE454 |
| Description |
| Available in range from 2 way to 16 way terminations . |
| Applications |
Application in general industrial equipment and home appliances like uninterruped power
Supplies, Invertors, Printers, Stabilizers, Airconditioners, Automobiles, Weighing Scale Equipment, Industrial light etc. |
| Features |
| Brass Screws Nickel Plated, Insert Moulded Brass Bush in Housing , Rigid Design, |
|
| Also available in |
| 2 WAY |
SE450 |
10 WAY |
SE458 |
| 3 WAY |
SE451 |
11 WAY |
SE459 |
| 4 WAY |
SE452 |
12 WAY |
SE460 |
| 5 WAY |
SE453 |
13 WAY |
SE461 |
| 6 WAY |
SE454 |
14 WAY |
SE462 |
| 7 WAY |
SE455 |
15 WAY |
SE463 |
| 8 WAY |
SE456 |
16 WAY |
SE464 |
| 9 WAY |
SE457 |
|
| Technical Specifications |
| H.V Breakdown test |
>1.5 KV AC for 1 Min |
| Current Rating |
10 A 250 V AC |
| Contact Resistance |
< 10 m Ohms |
| Insulation Resistance |
> 1000 M Ohms |
| Ambient Temperature |
-25° to + 110°C |
| Housing Material |
Phenolic Moulded |
| Terminals |
Brass |
| Terminals Finish |
Nickel Plated |
| Mounting |
Chassis Mounting |
| Color |
Black |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
