| Barrier Terminal Blocks ( Black Colour ) |
| Terminals - SE543 |
 |
 |
| SE543 | |||
| Description | |||
| Available in 2, 3, 4, & 6, no of ways. Also available in 15A, and 30A, Series. |
|||
| Applications | |||
| Application in general industrial equipment and home appliances like uninterruped power Supplies Invertors Stabilizers, Airconditioners Industrial lights, Industrial Control panel etc. |
|||
| Features | |||
| Nickel plated wire retainers , Nickel Plated Screws | |||
| Also available in | |||
Code No |
No. of Ways |
Dimensions |
|
| A | B | ||
| SE540 | 02 | 60.6 | 42.8 |
| SE541 | 03 | 80 | 62.4 |
| SE542 | 04 | 95.4 | 78.5 |
| SE543 | 06 | 133 | 117 |
| Technical Specifications | |||
| H.V Breakdown test | >1.5 KV AC for 1 Min | ||
| Current Rating | 60 A 250 V AC | ||
| Contact Resistance | < 10 m Ohms | ||
| Insulation Resistance | > 1000 M Ohms | ||
| Ambient Temperature | -25° to + 110°C | ||
| Housing Material | Phenolic Moulded | ||
| Terminals | Brass | ||
| Terminals Finish | Nickel Plated | ||
| Mounting | Chassis Mounting | ||
| Color | Black | ||
| Terminals - SE586 |
 |
 |
| SE586 | ||||
| Description | ||||
| Available in 2, 3, 4, & 6 no of ways. Also available in 15A, and 30A, Series. |
||||
| Applications | ||||
| Application in general industrial equipment and home appliances like uninterruped power Supplies, Invertors, Stabilizers, Airconditioners, Industrial lights, Industrial Control panel etc. |
||||
| Features | ||||
| Nickel Plated Screws, Nickel plated wire retainers | ||||
| Also available in | ||||

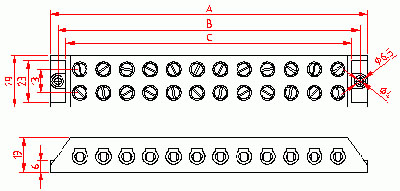

Code No. |
No.Of Ways |
Dimensions |
||
| A | B | C | ||
| SE-585 | 02 | 45 | 35.7 | 29 |
| SE-586 | 03 | 58 | 50 | 40 |
| SE-587 | 04 | 72 | 62 | 54 |
| SE-588 | 05 | 84 | 74.3 | 66 |
| SE-589 | 06 | 98 | 90 | 80 |
| SE-590 | 08 | 120.5 | 110.7 | 102 |
| SE-591 | 10 | 161 | 150.2 | 138 |
| SE-592 | 12 | 188 | 177.2 | 164 |
| Technical Specifications | ||||
| H.V Breakdown test | >1.5 KV AC for 1 Min | |||
| Current Rating | 30 A 250 V AC | |||
| Contact Resistance | < 10 m Ohms | |||
| Insulation Resistance | > 1000 M Ohms | |||
| Ambient Temperature | -25° to + 110°C | |||
| Housing Material | Phenolic Moulded | |||
| Terminals | Brass | |||
| Terminals Finish | Nickel Plated | |||
| Mounting | Chassis Mounting | |||
| Color | Black | |||
| Terminals - SE595 |
 |
 |
| SE595 | |||
| Description | |||
| Available in 2, 3, 4, & 6 no of ways. Also available in 30A Series. |
|||
| Applications | |||
| Application in general industrial equipment and home appliances like uninterruped power Supplies, Invertors, Stabilizers, Airconditioners, Industrial lights, Industrial Control panel etc. |
|||
| Features | |||
| Nickel Plated Screws | |||
| Also available in | |||
Code No. |
No.Of Ways |
Dimensions |
|
| A | B | ||
| SE595 | 02 | 68 | 55 |
| SE596 | 03 | 88 | 75 |
| SE597 | 04 | 106.7 | 94 |
| SE598 | 06 | 142 | 129 |
| Technical Specifications | |||
| H.V Breakdown test | >1.5 KV AC for 1 Min | ||
| Current Rating | 60 A 250 V AC | ||
| Contact Resistance | < 10 m Ohms | ||
| Insulation Resistance | > 1000 M Ohms | ||
| Ambient Temperature | -25° to + 110°C | ||
| Housing Material | Phenolic Moulded | ||
| Terminals | Brass | ||
| Terminals Finish | Nickel Plated | ||
| Mounting | Chassis Mounting | ||
| Color | Black | ||
